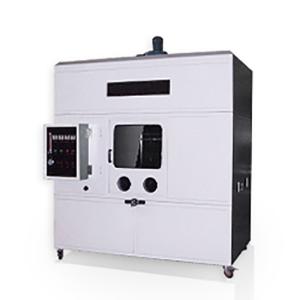

UL1581 Flammability Test Chamber , AC220V 50HZ Plastic Material Testing
Scope of application:
The equipment has a beautiful appearance, reasonable internal structure, simple operation and accurate test. It is widely used in cable manufacturers, colleges and universities and commodity inspection departments.
Meet the standard:
It is strictly according to UL1581sect1080. 1 ~ 1080. Standard production, and approved by UL company which is Guangzhou meihua, fully comply with the test standard of VW-1FlameTest combustion, and applicable to the VW-1 of UL1581, UL13, UL444, UL1655 and ft-1 and ft-2 of CSA.
Main features:
The equipment is composed of test part and control part, which can be installed and adjusted on site. The control system is highly automated and has automatic ignition function. Temperature and time display, the observation record is convenient, use stable and reliable.
Main parameters:
1. Test case volume: 4. 32 m3
2. Material: external: square steel frame structure, thickening 1. 5mm electrostatic baking white paint; Inside B: electrostatic baking black paint.
3. Observation window: the observation window is tempered glass, and the surrounding area is surrounded by SUS304 stainless steel wrap, and the size is 500mm* 400mm.
4. Operation window: 2, total peripheral dimension phi 160mm, peripheral to 3. 0mm stainless steel wrap side, sealed for long arm leather gloves, length of 600mm.
5. Air exhaust system: A. Adopt centrifugal fan to exhaust the wind. B the seal push plate is 2. 0mm stainless steel; C and both sides have sliding slots
6. Inlet: 4. The dimensions are 200mm* 100mm, and the sealing push-pull plates are 2. 0mm stainless steel plate, both sides have sliding slots.
7. Bottom fixed frame: size 2. 1 m * 1. 16 m width * 0. 6m high, 40mm*40mm square, electrostatic baking white paint, the bottom is installed with 4 three-inch trukles and two of them have brakes while the other two not.
8. Lighting equipment: adopt anti-mist and smoke - proof incandescent lamp.
9. Flame time: 0-99. 99 seconds arbitrary setting.
10. Stop burning time: 0-99. 99 seconds arbitrary setting
11. Flame frequency: 0-999999 arbitrary setting
12. The equipment has automatic ignition, automatic timing, counting function and high test precision
13. Dimensions: L2100mm*W1630mm*H2800mm
14. Work power: AC220V, 50HZ
Technical services:
1. 20 years of brand commitment, patent quality, quality assurance, superior performance, excellent quality and full service;
2. 20 years of brand communication, professional team, professional technical and technical consultant, and the cooperation of various quality inspection institutes and schools;
3. Provide free service for the whole year, five quality control procedures, from material input to product handover control quality, ensure that the user is absolutely authentic;
4. The brand effect absolutely guarantees the quality of the products, and we provide high quality products with high quality products and the highest cost performance to ensure the testing data, and the guarantee of the company;
5. 18 professional technicals will solve any problem in your products. Professional after-sales team will provide you with the most beautiful service;
6. Free teaching research, equipment maintenance and free upgrade of equipment server;
